CenterFold Tower
CenterFold Tower
CenterFold Tower
CenterFold Tower
CenterFold Tower

Category: Tags: ,

Product Description

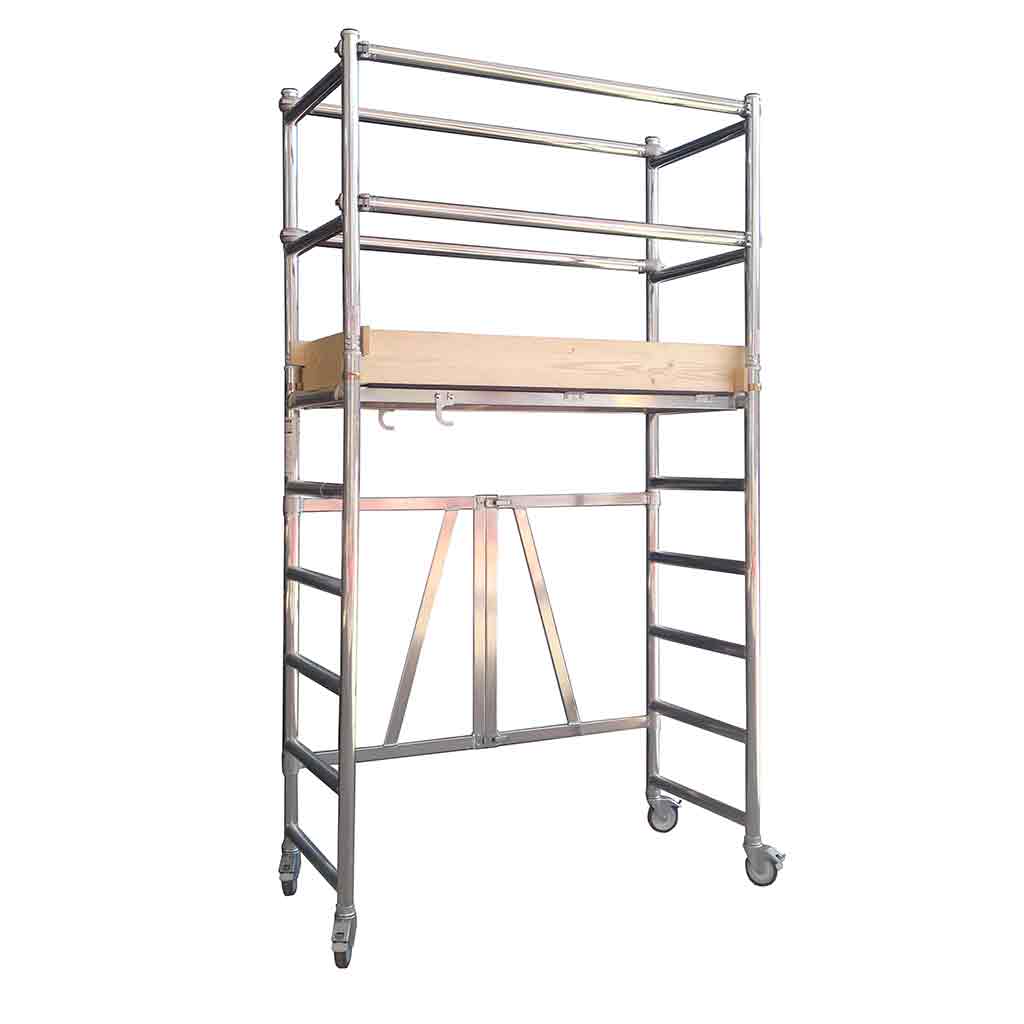

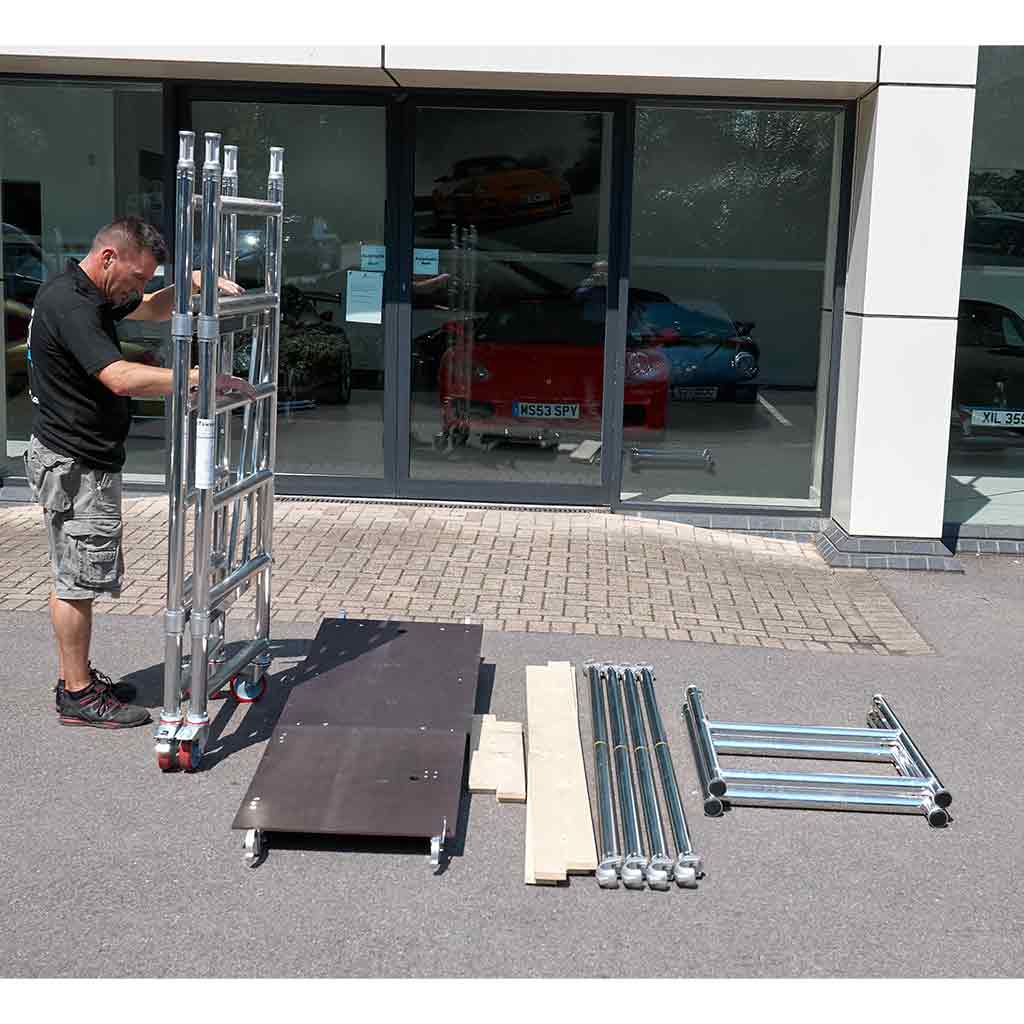

The industrial Centrefold is a heavy-duty tower with a workload of 250kg is portable and will fit through standard doorways and the captive folding brace mechanism minimise the components. The larger 2m working platform has an increased trapdoor opening for ease of use. Tough brace hook assemblies, incorporate double torsion stainless steel springs for durable and reliable use.

Product Features

  • Heavy duty construction with optional platform heights
  • Fitted with lockable castors and non-slip platform boards
  • Passes easily through standard doorways
  • Large working platform 0.7m wide and 2.0m long
  • 5-year warranty
  • 250kg work load capacity

SKU Approx Working
Height1 (m)		 Platform
Height (m)		 Platform
L x W (m)		 Overall
L x W (m)		 Weight (kg)
3010-012 3.30 1.70 1.50 x 0.70 0 x 0 29.0

SKU Approx Working
Height1 (m)		 Platform
Height (m)		 Platform
L x W (m)		 Overall
L x W (m)		 Weight (kg)
3010-013 3.30 1.70 2.00 x 0.70 0 x 0 43.0

Where applicable, Working Height1 is calculated as 1.6m plus platform height or last climbing tread, whichever is appropriate. Ladders set at an angle of 75o degrees.
For more information and additional dimension details, please see downloads tab.

No Video

Download the latest datasheet for the: CenterFold 1.5m Scaffold Tower
Download the latest datasheet for the: CenterFold 2.0m Scaffold Tower

Delivery to UK mainland destinations (England, Wales, Southern Scotland) usually takes between 10 days. For exact times, please call our sales team. Please see the delivery page for more information. Standard deliveries are made between 8AM and 6PM Monday to Friday, except on Bank Holidays.

TB Davies is an approved PASMA training centre for South Wales. To become PASMA trained, please click here and view the full offering of PASMA courses available.
