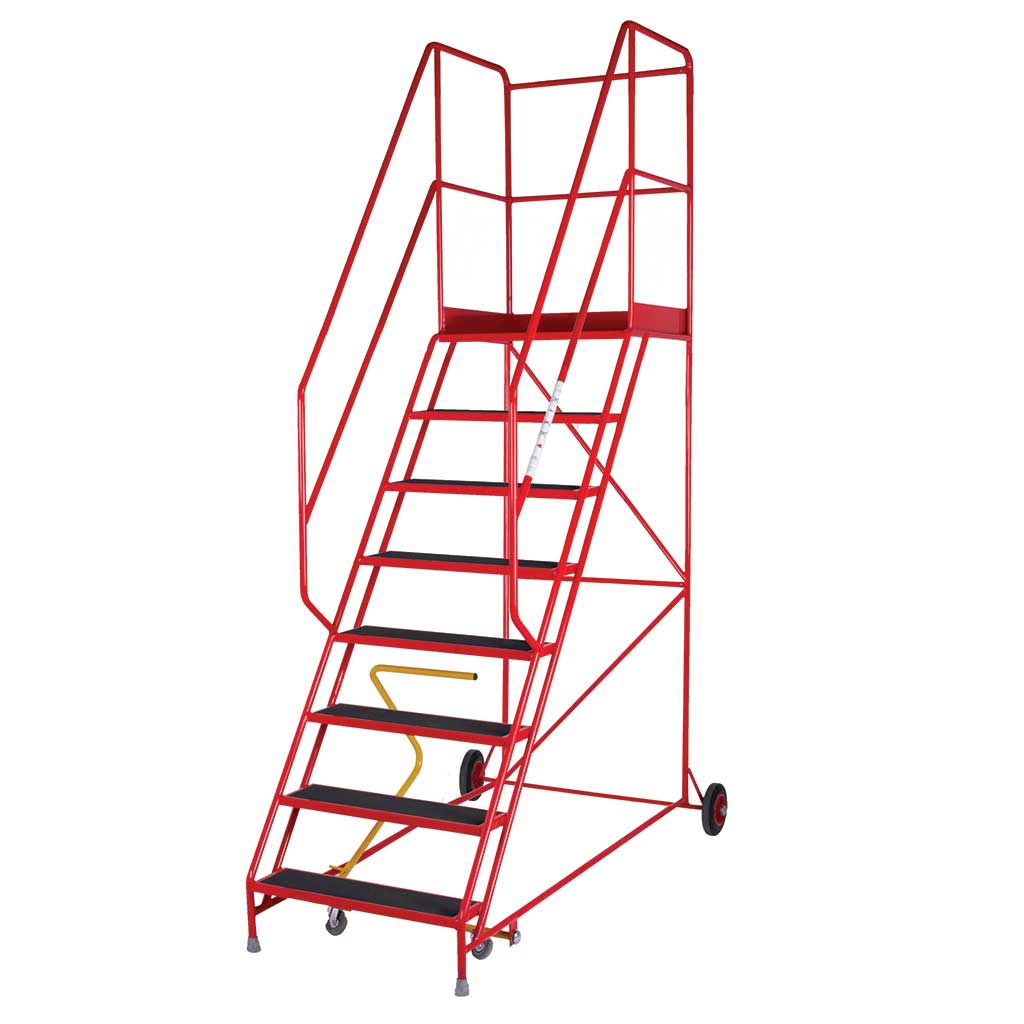

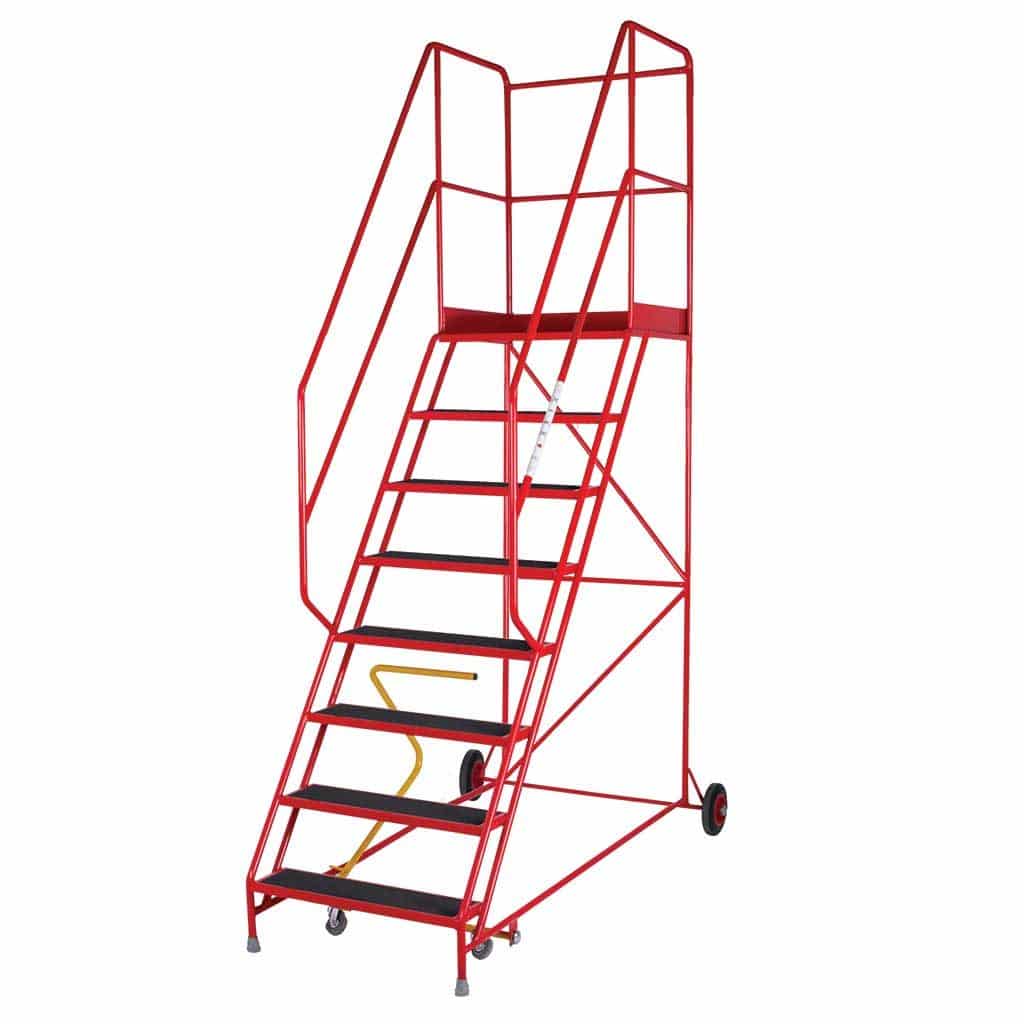

TB Davies British Standard Heavy Duty Mobile Safety StepsTB Davies British Standard Heavy Duty Mobile Safety Steps

Category: Tags: ,

Product Description

Suitable for construction, military and warehouse applications with extra wide treads and a large working platform. Kitemarked to the demanding EN131-7 British Standard with additional bracing making it suitable for more frequent use applications.

Product Features

  • Please Note, 10 tread & above supplied in 2 parts
  • Extra wide 700 x 180mm deep treads for comfort and safetyy
  • Large 700 x 560mm platform with intermediate guardrails and toe boards Fully welded steel construction
  • Additional bracing for more frequent use applications
  • Choice of anti-slip or punched treads
  • Locking device and anti-ascent bar
  • Easy one-user manoeuvrability on heavy duty wheels and castors
  • EN131-7

Ladder Specification

British Standard Heavy Duty Mobile Safety Step – Punched Tread

SKU Treads Approx Working
Height1 (m)		 Platform
Height (m)		 Height (m) Width (m) Depth (m) Weight (kg)
2019-003 3 2.28 0.68 1.68 904 0.97 35.0
2019-004 4 2.50 0.90 1.90 954 1.12 40.0
2019-005 5 2.73 1.13 2.13 1004 1.28 45.0
2019-006 6 2.95 1.35 2.35 1054 1.43 50.0
2019-007 7 3.18 1.58 2.58 1104 1.59 55.0
2019-008 8 3.40 1.80 2.80 1154 1.74 60.0
2019-009 9 3.63 2.03 3.03 1204 1.90 65.0
2019-010 10 3.85 2.25 3.25 1254 2.05 85.0
2019-011 11 4.08 2.48 3.48 1304 2.21 95.0
2019-012 12 4.30 2.70 3.70 1354 2.36 105.0
2019-013 13 4.53 2.93 3.93 1404 2.52 110.0
2019-014 14 4.75 3.15 4.15 1454 2.67 120.0
2019-015 15 4.98 3.38 4.38 1504 2.83 130.0

Where applicable, Working Height1 is calculated as 1.6m plus platform height or last climbing tread, whichever is appropriate. Ladders set at an angle of 75o degrees.
For more information and additional dimension details, please see downloads tab.

British Standard Heavy Duty Mobile Safety Step – Anti-Slip Tread

SKU Treads Approx Working
Height1 (m)		 Platform
Height (m)		 Height (m) Width (m) Depth (m) Weight (kg)
2020-003 3 2.28 0.68 1.68 904 0.97 35.0
2020-004 4 2.50 0.90 1.90 954 1.12 40.0
2020-005 5 2.73 1.13 2.13 1004 1.28 45.0
2020-006 6 2.95 1.35 2.35 1054 1.43 50.0
2020-007 7 3.18 1.58 2.58 1104 1.59 55.0
2020-008 8 3.40 1.80 2.80 1154 1.74 60.0
2020-009 9 3.63 2.03 3.03 1204 1.90 65.0
2020-010 10 3.85 2.25 3.25 1254 2.05 85.0
2020-011 11 4.08 2.48 3.48 1304 2.21 95.0
2020-012 12 4.30 2.70 3.70 1354 2.36 105.0
2020-013 13 4.53 2.93 3.93 1404 2.52 110.0
2020-014 14 4.75 3.15 4.15 1454 2.67 120.0
2020-015 15 4.98 3.38 4.38 1504 2.83 130.0

Where applicable, Working Height1 is calculated as 1.6m plus platform height or last climbing tread, whichever is appropriate. Ladders set at an angle of 75o degrees.
For more information and additional dimension details, please see downloads tab.

No Video

Download the latest datasheet for the:

Delivery to UK mainland destinations (England, Wales, Southern Scotland) usually takes between 10-15 days. For exact times, please call our sales team. Please see the delivery page for more information. Standard deliveries are made between 8AM and 6PM Monday to Friday, except on Bank Holidays.
